SGMGV

Servo and motionYaskawa

sgmgv
sgmgv

SGMGV

0.3 – 15kW, medium inertia

The SGMGV medium capacity brushless servomotor can be used in a variety of applications.

SGMGV Features Highlights:

  • Medium inertia
  • Mounted high resolution serial encoder: 20-bit
  • Maximum Speed: 3000 rpm
  • Wide Selection: 30W to 15kW
  • Holding Brake and Shaft Seal options available
  • Protective Structure: IP67

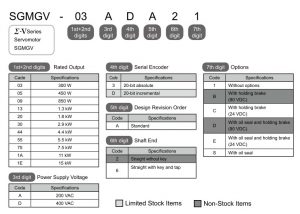

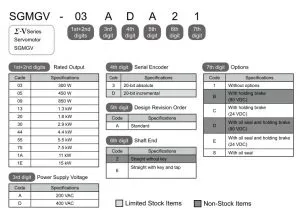

SGMGV Models & Ratings



200 V Model Rated Output*1 Rated Torque*1 Instantaneous Peak Torque*1 Rated Current*1 Instantaneous Max. Current*1 Rated Angular Acceleration*1
SGMGV-03A 0.3 kW 1.96 5.88 2.8 8 7900 (7180)
SGMGV-05A 0.45 kW 2.86 8.92 3.8 11 8590 (7990)
SGMGV-09A 0.85 kW 5.39 13.8 6.9 17 3880 (3370)
SGMGV-13A 1.3 kW 8.34 23.3 10.7 28 4190 (3790)
SGMGV-20A 1.8 kW 11.5 28.7 16.7 42 4420 (4090)
SGMGV-30A 2.9 kW 18.6 45.1 23.8 56 4040 (3410)
SGMGV-44A 4.4 kW 28.4 71.1 32.8 84 4210 (3740)
SGMGV-55A 5.5 kW 35.0 87.6 42.1 110 3930 (3590)
SGMGV-75A 7.5 kW 48.0 119 54.7 130 3840 (3580)
SGMGV-1AA 11 kW 70.0 175 58.6 140 2890 (2680)
SGMGV-1EA 15 kW 95.4 224 78 170 3150 (2960)

*1. These items and torque-motor speed characteristics quoted in combination with an SGDV SERVOPACK are at an armature winding temperature of 20°C.
*2. Some restrictions apply when using an SGDV-200A SERVOPACK in combination with an SGMGV-30A servomotor.

    1. Notes:
  1. The values in parentheses are for servomotors with holding brakes.
  2. The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
    SGMGV-03D/-05D: 250mm x 250mm x 6mm (aluminum)
    SGMGV-09D/-13D/-20D:: 400mm x 400mm x 20mm (iron)
    SGMGV-30D/-44D/-55D/-75D: 550mm x 550mm x 30mm (iron)
    SGMGV-1AD/-1ED: 650mm x 35mm (iron)
400 V Model Rated Output*1 Rated Torque*1 Instantaneous Peak Torque*1 Rated Current*1 Instantaneous Max. Current*1 Rated Angular Acceleration*1
SGMGV-03D 0.3 kW 1.96 5.88 1.4 4 7900 (7180)
SGMGV-05D 0.45 kW 2.86 8.92 1.9 5.5 8590 (7990)
SGMGV-09D 0.85 kW 5.39 13.8 3.5 8.5 3880 (3370)
SGMGV-13D 1.3 kW 8.34 23.3 5.4 14 4190 (3790)
SGMGV-20D 1.8 kW 11.5 28.7 8.4 20 4420 (4090)
SGMGV-30D 2.9 kW 18.6 45.1 11.9 28 4040 (3410)
SGMGV-44D 4.4 kW 28.4 71.1 16.5 40.5 4210 (3740)
SGMGV-55D 5.5 kW 35.0 87.6 20.8 52 3930 (3590)
SGMGV-75D 7.5 kW 48.0 119 25.7 65 3840 (3580)
SGMGV-1AD 11 kW 70.0 175 28.1 70 2890 (2680)
SGMGV-1ED 15 kW 95.4 224 37.2 85 3150 (2960)

*. These items and torque-motor speed characteristics quoted in combination with an SGDV SERVOPACK are at an armature winding temperature of 20°C.

  1. Notes:
  2. The values in parentheses are for servomotors with holding brakes.
  3. The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
    SGMGV-03D/-05D: 250mm x 250mm x 6mm (aluminum)
    SGMGV-09D/-13D/-20D: 400mm x 400mm x 20mm (iron)
    SGMGV-30D/-44D/-55D/-75D: 550 mm x 550mm x 30mm (iron)
    SGMGV-1AD/-1ED: 650mm x 650mm x 35mm (iron)



Sản phẩm liên quan

JZSP-CVP01-05-E

JZSP-CVP01-05-E

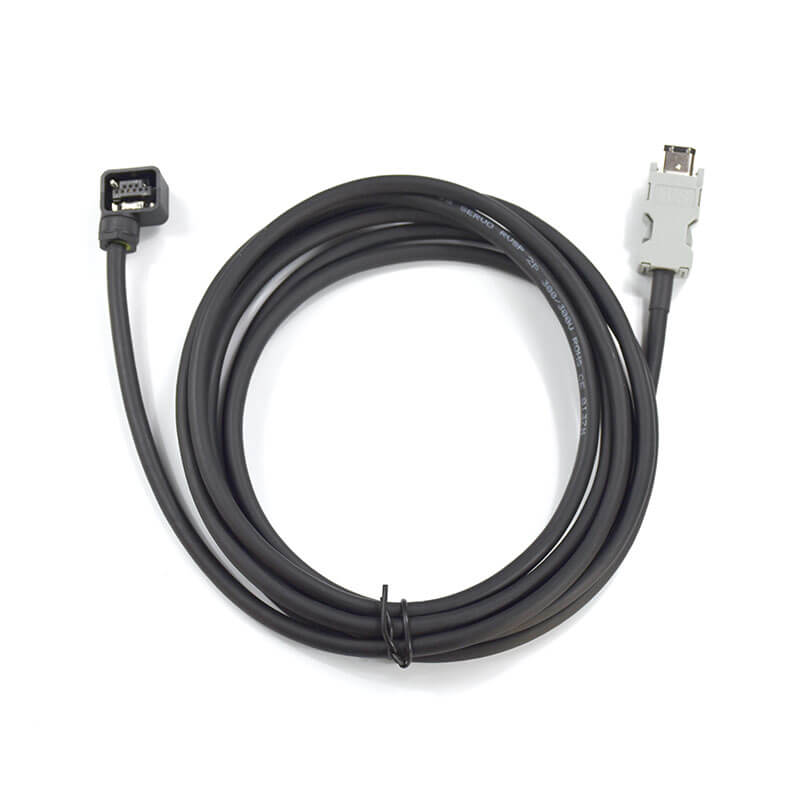

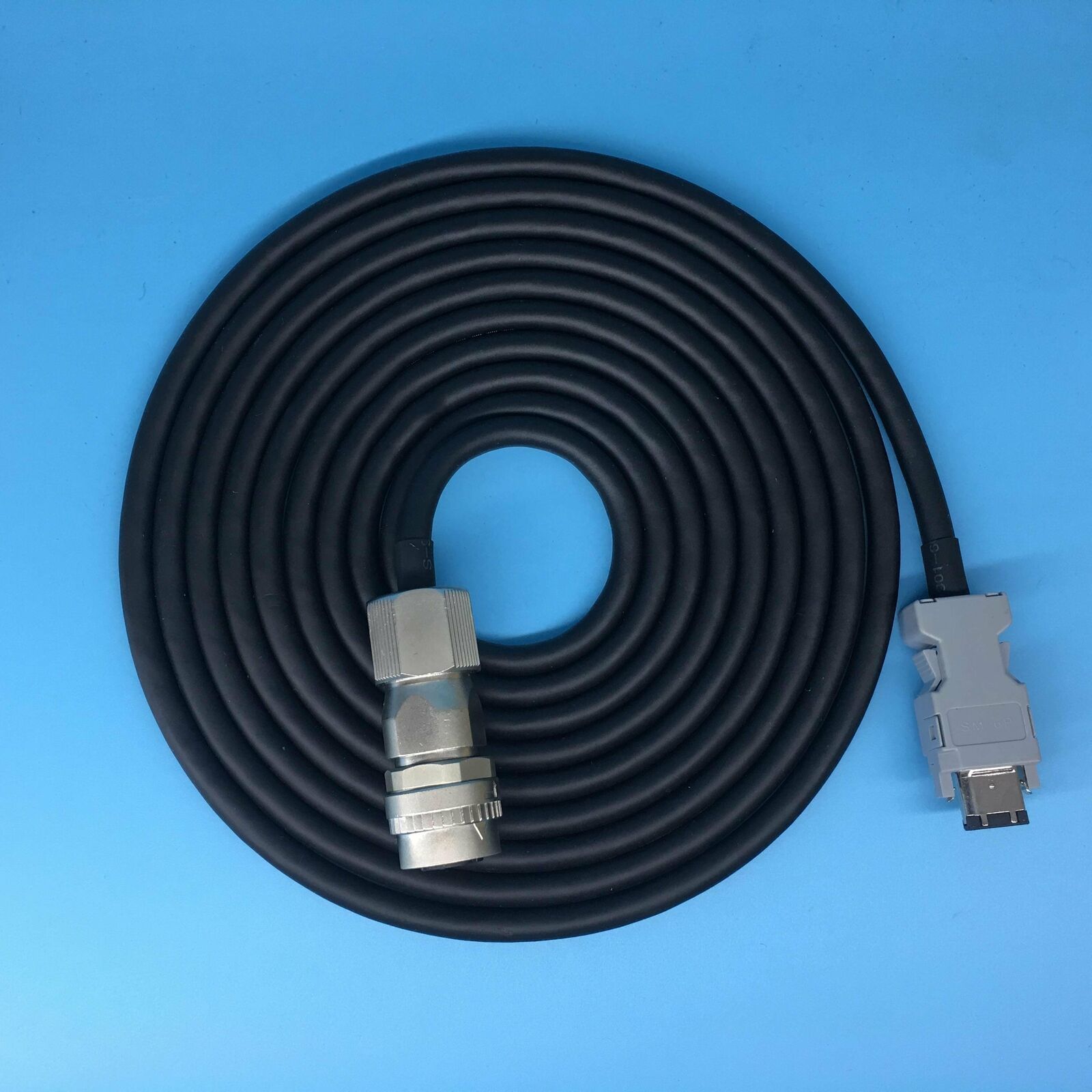

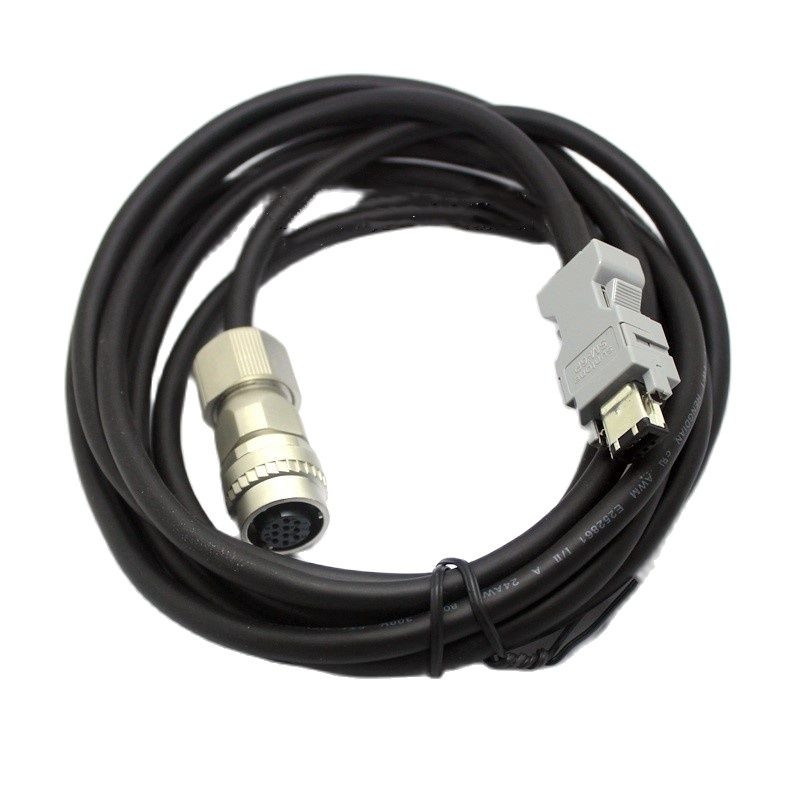

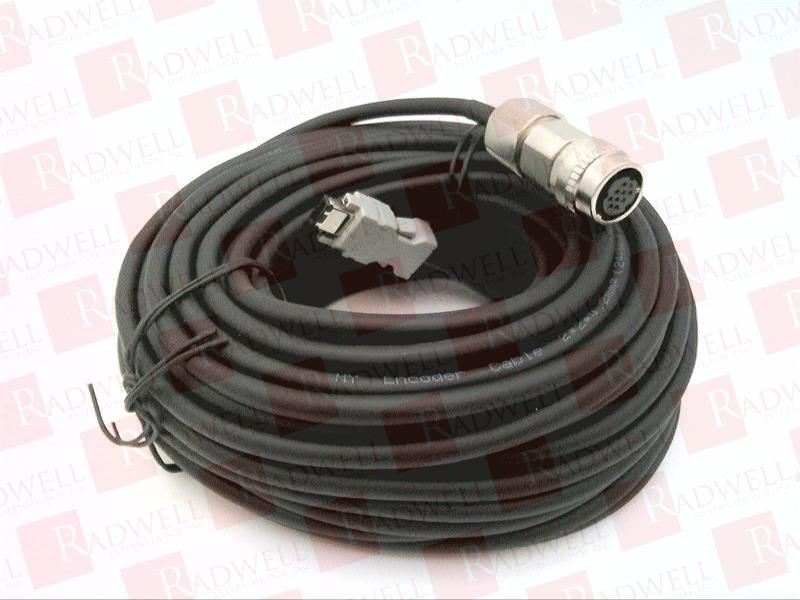

Cáp Encoder JZSP-CVP01-05-E Cáp Encoder servo Yaskawa JZSP-CSP12-E, JZSP-CVP01-03-E , JZSP-CVP01-05-E, JZSP-CVP01-10-E , JZSP-CVP01-15-E, JZSP-CVP01-20-E sử dụng cáp tiêu chuẩn chi
