SGMVV

22kW, 30kW, 37kW, 45kW, 55kW

The SGMVV large capacity brushless servomotor can be used in a variety of applications. Offered totally-enclosed, separately cooled, IP44 (except for shaft opening).

SGMVV Features Highlights:

  • Medium inertia
  • High resolution absolute serial encoder: 20-bit
  • Maximum Speed: 2000 rpm
  • Wide Selection: 22kW to 55kW
  • Holding Brake and Shaft Seal options available
  • Flange or Foot Mount Option

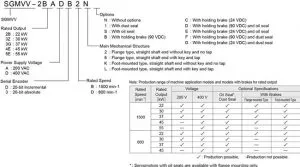

SGMVV Models & Ratings

200 V Model Rated Output* Rated Torque* Instantaneous Peak Torque* Rated Current* Instantaneous Max. Current* Rated Angular Acceleration*
SGMVV-2BA□B 22 kW 140 Nm 350 Nm 88 Arms 240 Arms 3830 (3100) rad/s2
SGMVV-3ZA□B 30 kW 191 Nm 478 Nm 120 Arms 340 Arms 3840 (3280) rad/s2
SGMVV-3GA□B 37 kW 236 Nm 589 Nm 152 Arms 460 Arms 3960 (3550) rad/s2
SGMVV-2BA□D 22 kW 262 Nm 526 Nm 104 Arms 240 Arms 3720 (3380) rad/s2
SGMVV-3ZA□D 30 kW 358 Nm 752 Nm 150 Arms 340 Arms 2780 (2470) rad/s2
SGMVV-3GA□D 37 kW 442 Nm 930 Nm 195 Arms 460 Arms 2830 (2570) rad/s2

*. These items and torque-motor speed characteristics quoted in combination with a SERVOPACK are at an armature winding temperature of 20°C.

    1. Notes:
  1. The values in parentheses are for servomotors with holding brakes.
  2. The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
    SGMVV-2BA□B/-3ZA□B/-3GA□B/-2BA□D: 650mm x 650mm x 35mm (iron)
    SGMVV-3ZA□D/-3GA□D: 740mm x 520mm x 27mm (iron)



400 V Model Rated Output* Rated Torque* Instantaneous Peak Torque* Rated Current* Instantaneous Max. Current* Rated Angular Acceleration*
SGMVV-2BD□B 22 kW 140 Nm 350 Nm 44 Arms 120 Arms 3830 (3100) rad/s2
SGMVV-3ZD□B 30 kW 191 Nm 478 Nm 60 Arms 170 Arms 3840 (3280) rad/s2
SGMVV-3GD□B 37 kW 236 Nm 589 Nm 76 Arms 230 Arms 3970 (3550) rad/s2
SGMVV-4ED□B 45 kW 286 Nm 715 Nm 102 Arms 280 Arms 2670 (2330) rad/s2
SGMVV-5ED□B 55 kW 350 Nm 875 Nm 117 Arms 340 Arms 2710 (2420) rad/s2
SGMVV-2BD□D 22 kW 262 Nm 526 Nm 52 Arms 120 Arms 3720 (3380) rad/s2
SGMVV-3ZD□D 30 kW 358 Nm 752 Nm 75 Arms 170 Arms 2780 (2470) rad/s2
SGMVV-3GD□D 37 kW 442 Nm 930 Nm 98 Arms 230 Arms 2830 (2570) rad/s2
SGMVV-4ED□D 45 kW 537 Nm 1182 Nm 110 Arms 280 Arms 2980 rad/s2

*. These items and torque-motor speed characteristics quoted in combination with an SERVOPACK are at an armature winding temperature of 20°C.

  1. Notes:
  2. The values in parentheses are for servomotors with holding brakes.
  3. The above specifications show the values under the cooling condition when the following heat sinks are mounted on the servomotors.
    SGMVV-2BD□B/-3ZD□B/-3GD□B/-2BD□D: 250mm x 250mm x 35mm (iron)
    SGMVV-4ED□B/-5ED□B/-3ZD□D/-3GD□D/-4ED□D: 750mm x 520mm x 27mm (iron)
