Yaskawa MV1000

Name: Yaskawa MV1000
Brand: Yaskawa
SKU: Yaskawa MV1000

Biến tần trung thế Yaskawa

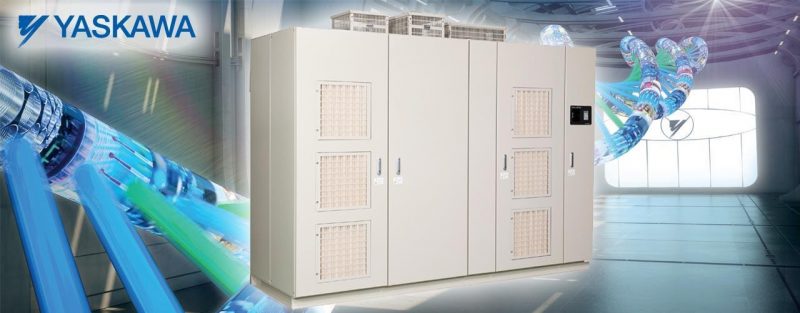

biến tần trung thế yaskawa mv1000

Giới thiệu chung về biến tần trung thế yaskawa mv1000

Biến tần Yaskawa MV1000 là loại biến tần trung thế nhỏ nhất thế giới
Thiết kế nhỏ gọn, Hiệu suất cao.
Biến tần Yaskawa MV1000 Tiêt kiệm năng lượng
Thân thiện với người dùng.
Biến tần Yaskawa MV1000 thân thiện môi trường và an toàn.
The FSDrive-MV1000 is Yaskawa’s latest medium-voltage AC drive with multi-outputs connected in series.
The world’s smallest dimensions have been achieved with a simplified main circuit configuration.
The drive includes many features such as stable continuous operations and the industry’s highest level of energy savings.
The lineup covers input/output voltages from 2.4 kV to 11 kV, and meets the world’s major standards.

Thông số kỹ thuật

Ứng dụng của biến tần trung thế Yaskawa	Tải thường: Quạt, bơm, máy thổi khí Tải nặng: máy nén khí, máy đùn ép, máy cuộn, máy công cụ…
Nguồn cấp	CIMR-MV2A (3.0kV/3.3 kV ):-Main Circuit: Three -phase, 3000 V (50 Hz ± 5 Hz) or 3300 V (50/60 Hz ± 5 Hz) —20% to +10%-Control Circuit: Single-phase, 230 V 50/60 Hz ± 5% CIMR-MV2C (6.0 kV/6.6 kV): -Main Circuit: Three-phase, 6000 V (50 Hz ± 5 Hz) or 6600 V (50/60 Hz ± 5 Hz) —20% to +10%-Control Circuit: Single-phase, 230 V 50/60 Hz ± 5% CIMR-MV2A (10 kV/10.5 kV/11 kV): -Main Circuit: Three-phase, 10000 V, 10500 V or 11000 V (50/60 Hz ± 5 Hz) —20% to +10% -Control Circuit: Single-phase, 230 V 50/60 Hz ± 5%
Công suất	CIMR-MV2A (3.0kV/3.3 kV ): 132-3000KWCIMR-MV2C (6.0 kV/6.6 kV):250-6000KWCIMR-MV2A (10 kV/10.5 kV/11 kV): 530-9910KW
Dòng điện	35-650A
Dải tần số	0.01 to 120 Hz
Mô men khởi động	± 5% (open-loop vector control), ± 3% (closed loop vector control)
Khả năng quá tải	110% trong vòng 1 phút và 120% trong 15 giây
Phương pháp điều khiển	Véc tơ vòng hở,véc tơ vòng kín, điều khiển V/f (cho vận hành nhiều động cơ), véc tơ vòng kín cho SM
Phanh hãm	Dùng phương pháp hãm trực tiếp
Ngõ vào	Ngõ vào điện áp: 2.4-11KV
Ngõ ra	Ngõ ra điện áp: 2.4-11KV
Chức năng bảo vệ	Quá dòng, quá áp, thấp áp, chạm đất đầu ra, đầu ra mở pha, quá tải, lỗi làm lạnh quạt, biến áp bị quá nóng, Motor quá nóng…
Chức năng chính	Kiểm soát mô-men xoắn, chuyển đổi kiểm soát tốc độ / mômen xoắn, bồi thường tổn thất điện năng tức thời, tìm kiếm tốc độ, phát hiện Overtorque, giới hạn mô-men xoắn, hãm lúc khởi động và dừng, điều khiển tiết kiệm năng lượng, truyền thông MEMOBUS (RS-485, max. 115,2 kbps),
Truyền thông	RS-232: Digital operator RS-485: MEMOBUS (Modbus) USB : DriveWizard Plus MV
Thiết bị mở rộng	Profibus-DP, DeviceNet, Ethernet hoặc CP215 có thể được cài đặt
Cấp bảo vệ	IP 20, IP 40

Yaskawa MV1000 175 – 16,000 HP

The MV1000 is a Medium Voltage (MV) AC drive that takes a generational leap in ease of application and installation. With Yaskawa’s Smart Harmonics™ Technology input isolation transformer and 9 level output for 4kV drives (17 level line-to-line), the biggest traditional issues with the application of MV drives all but disappear.

The MV1000 is a compact, all-in-one package including (optional) input switchgear, ideal for new or retrofit installations.

Yaskawa MV1000 Features Highlights:

Compact design which produces a very competitive footprint across the entire power range in a NEMA Type 1 enclosure (filtered and gasketed)
Using the Yaskawa Smart Harmonics™ Technology ensuring very low THD, without the need for additional filters
Unique output stage using an enhanced Cascaded H-Bridge configuration reduces the number of power cells by half, providing a very clean output waveform to the motor, without the need for additional filters or reactors
Advanced control features providing high performance including Open Loop Vector Control and excellent Energy Saving capabilities
Digital Operator with an easy-to-view LCD display (same as used on the A1000 series LV drives)
Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost
DriveWizard™ plus MV computer software and Application Sets for easy configuration
USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives
High quality design, with an expected field MTBF greater than 200,000 Hours (22.8 years).

Yaskawa MV1000 Specifications

Item	Specification
Efficiency	97% or better (at rated motor speed, 100% load)
Power Factor	Minimum 0.95 lag (at motor rated speed, 100% Load)
HP/Output Voltage Ranges	200 – 2,750 HP @ 2.3 kV 175 – 4,000 HP @ 3.3 kV 300 – 12,000HP @ 4.16 kV 350 – 8,000HP @ 6.6 kV 700 – 16,000HP @ 11 kV
Cooling Method	Forced air-cooling fan (with failure detection)
Ambient Operating Temperature	−5 to +40˚C (up to +50˚C with output current derate) 95% RH or less (no condensation)
Control Method	Open-loop vector control, Closed loop vector control, V/f control (for multiple motor operation), Closed loop vector control for SM (option)
Input Voltage Range	2.3 kV -20% to +10%, 60Hz 3.3 kV -20% to +10%, 50/60Hz 4.16 kV -20% to +10%, 60Hz 6.6 kV -20% to +10%, 50/60Hz 11 kV -20% to +10%, 50/60Hz
Input Configuration	Integrated isolating transformer, with multi-pulse secondary using Smart Harmonics™ Technology (less than 2.5% THD, input current)
Output Configuration	Enhanced Cascaded H-Bridge, with two 5-level cells per phase, providing a 9-level output waveform for 4kV ratings
Overload Capacity	100% Continuous 110% for 1 minute 120% for 15 Seconds
Freq. Control Range	0.01 to 120 Hz
Freq. Control Accuracy	±0.5%
Analog Input Resolution	0.03 Hz
Accel/Decel Time	0.0 to 6000 s
Speed Accuracy	± 0.5% (open-loop vector control), ± 0.02% (closed loop vector control)
Torque Accuracy	±5% (open-loop vector control), ±3% (closed loop vector control)
Momentary Power Loss	Max. 2 Seconds (UPS required for control power)
Main Control Functions	Torque Control, Droop control, Speed/Torque control switch, Momentary Power Loss, Speed Search, Overtorque detection, Toque limit, 17-Step speed (max), Accel/decel time switch, S-Curve accel/decel, 3-wire sequence, Auto-tuning (rotational, stationary), Dwell, Cooling fan on/off, Slip compensation, Torque compensation, Frequency jump, Upper/lower limits for frequency reference, DC Injection braking at start and stop, High slip braking, PID control (with sleep function), Energy Saving control, Modbus communications (RS485, max. 115.2 kbps), Fault retry
Digital Operator	Status display, Fault display, Parameter setting, Parameter reference
Protective Functions	Overcurrent, Overvoltage, Undervoltage, Output ground fault, Output open-phase, Overload, Cooling-fan error, Transformer overheat, Motor overheat, etc.
Communications (optional)	Any one of PROFIBUS-DP, DeviceNet, Ethernet, or ModbusTCP/IP can be installed
Input Transformer	Class H dry type, −5%/N/+5% tap, secondary multi-phase winding
Temperature Protection	Power cells: protected by thermistor for temperature Transformer: protected by PT100Ω
Storage Temperature	−20 to +60˚C (for very short term for shipment and handling)
Enclosure	NEMA Type 1 (IP40) – 12 GA Sheet Metal construction Front access for maintenance and component replacement Paint finish: 5Y7/1 Munsell semi-gloss Beige
Applicable Standards	UL, CSA, NEMA, IEEE, JIS, JEM, JEC

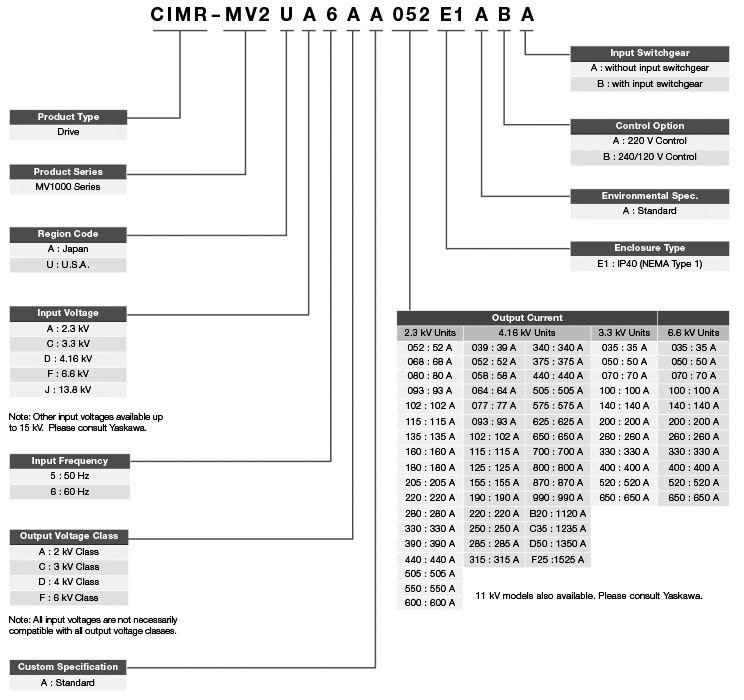

Yaskawa MV1000 drive model

Biến tần trung thế yaskawa 2.3 kV, 3-Phase

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	3.3 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2UA6AA052E1ABA	200	220	52	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UA6AA068E1ABA	300	280	68
CIMR-MV2UA6AA080E1ABA	350	330	80
CIMR-MV2UA6AA093E1ABA	400	390	93
CIMR-MV2UA6AA102E1ABA	450	420	102	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UA6AA115E1ABA	500	480	115
CIMR-MV2UA6AA135E1ABA	600	560	135
CIMR-MV2UA6AA160E1ABA	700	670	160
CIMR-MV2UA6AA180E1ABA	800	750	180	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UA6AA205E1ABA	900	850	205
CIMR-MV2UA6AA220E1ABA	1000	920	220
CIMR-MV2UA6AA280E1ABA	1250	1160	280	Three-Phase: 2400 VSine wave, proportional to input voltage	110% of rated output current for 60 sec.120% of rated output current for 15 sec.
CIMR-MV2UA6AA330E1ABA	1500	1370	330
CIMR-MV2UA6AA390E1ABA	1750	1620	390
CIMR-MV2UA6AA440E1ABA	2000	1820	440	Three-Phase: 2400 VSine wave, proportional to input voltage	110% of rated output current for 60 sec.120% of rated output current for 15 sec.
CIMR-MV2UA6AA505E1ABA	2250	2100	505
CIMR-MV2UA6AA550E1ABA	2500	2300	550
CIMR-MV2UA6AA600E1ABA	2750	2500	600

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	3.3 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2TA6AA052E1ABA	200	220	52	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2TA6AA068E1ABA	300	280	68
CIMR-MV2TA6AA080E1ABA	350	330	80
CIMR-MV2TA6AA093E1ABA	400	390	93
CIMR-MV2TA6AA102E1ABA	450	420	102	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2TA6AA115E1ABA	500	480	115
CIMR-MV2TA6AA135E1ABA	600	560	135
CIMR-MV2TA6AA160E1ABA	700	670	160
CIMR-MV2TA6AA180E1ABA	800	750	180	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2TA6AA205E1ABA	900	850	205
CIMR-MV2TA6AA220E1ABA	1000	920	220
CIMR-MV2TA6AA280E1ABA	1250	1160	280	Three-Phase: 2400 VSine wave, proportional to input voltage	110% of rated output current for 60 sec.120% of rated output current for 15 sec.
CIMR-MV2TA6AA330E1ABA	1500	1370	330
CIMR-MV2TA6AA390E1ABA	1750	1620	390
CIMR-MV2TA6AA440E1ABA	2000	1820	440	Three-Phase: 2400 VSine wave, proportional to input voltage	110% of rated output current for 60 sec.120% of rated output current for 15 sec.
CIMR-MV2TA6AA505E1ABA	2250	2100	505
CIMR-MV2TA6AA550E1ABA	2500	2300	550
CIMR-MV2TA6AA600E1ABA	2750	2500	600

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	3.3 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2AA6AA052E1ABA	200	220	52	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AA6AA068E1ABA	300	280	68
CIMR-MV2AA6AA080E1ABA	350	330	80
CIMR-MV2AA6AA093E1ABA	400	390	93
CIMR-MV2AA6AA102E1ABA	450	420	102	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AA6AA115E1ABA	500	480	115
CIMR-MV2AA6AA135E1ABA	600	560	135
CIMR-MV2AA6AA160E1ABA	700	670	160
CIMR-MV2AA6AA180E1ABA	800	750	180	Three-Phase: 2400 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AA6AA205E1ABA	900	850	205
CIMR-MV2AA6AA220E1ABA	1000	920	220
CIMR-MV2AA6AA280E1ABA	1250	1160	280	Three-Phase: 2400 VSine wave, proportional to input voltage	110% of rated output current for 60 sec.120% of rated output current for 15 sec.
CIMR-MV2AA6AA330E1ABA	1500	1370	330
CIMR-MV2AA6AA390E1ABA	1750	1620	390
CIMR-MV2AA6AA440E1ABA	2000	1820	440	Three-Phase: 2400 VSine wave, proportional to input voltage	110% of rated output current for 60 sec.120% of rated output current for 15 sec.
CIMR-MV2AA6AA505E1ABA	2250	2100	505
CIMR-MV2AA6AA550E1ABA	2500	2300	550
CIMR-MV2AA6AA600E1ABA	2750	2500	600

Biến tần trung thế yaskawa 3.3 kV, 3-Phase

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	3.3 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2UCA035ABA	175	200	35	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UCA050ABA	250	285	50
CIMR-MV2UCA070ABA	400	400	70
CIMR-MV2UCA100ABA	500	570	100
CIMR-MV2UCA140ABA	750	800	140	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UCA200ABA	1000	1150	200
CIMR-MV2UCA260ABA	1500	1500	260
CIMR-MV2UCA330ABA	2000	1900	330
CIMR-MV2UCA400ABA	2500	2300	400	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UCA520ABA	3500	3000	520
CIMR-MV2UCA650ABA	4000	3700	650

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	3.3 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2TCA035ABA	175	200	35	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2TCA050ABA	250	285	50
CIMR-MV2TCA070ABA	400	400	70
CIMR-MV2TCA100ABA	500	570	100
CIMR-MV2TCA140ABA	750	800	140	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2TCA200ABA	1000	1150	200
CIMR-MV2TCA260ABA	1500	1500	260
CIMR-MV2TCA330ABA	2000	1900	330
CIMR-MV2TCA400ABA	2500	2300	400	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2TCA520ABA	3500	3000	520
CIMR-MV2TCA650ABA	4000	3700	650

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	3.3 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2ACA035ABA	175	200	35	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2ACA050ABA	250	285	50
CIMR-MV2ACA070ABA	400	400	70
CIMR-MV2ACA100ABA	500	570	100
CIMR-MV2ACA140ABA	750	800	140	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2ACA200ABA	1000	1150	200
CIMR-MV2ACA260ABA	1500	1500	260
CIMR-MV2ACA330ABA	2000	1900	330
CIMR-MV2ACA400ABA	2500	2300	400	Three-Phase: 3000 V or 3300 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2ACA520ABA	3500	3000	520
CIMR-MV2ACA650ABA	4000	3700	650

Biến tần trung thế yaskawa 4.16 kV, 3-Phase

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	4.16 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2UD6DA039ABA	300	280	39	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA052ABA	400	375	52
CIMR-MV2UD6DA058ABA	450	420	58
CIMR-MV2UD6DA064ABA	500	460	64
CIMR-MV2UD6DA077ABA	600	550	77	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA093ABA	700	670	93
CIMR-MV2UD6DA102ABA	800	735	102
CIMR-MV2UD6DA115ABA	900	830	115
CIMR-MV2UD6DA125ABA	1000	900	125	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA155ABA	1250	1120	155
CIMR-MV2UD6DA190ABA	1500	1370	190
CIMR-MV2UD6DA220ABA	1750	1590	220
CIMR-MV2UD6DA250ABA	2000	1800	250	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA285ABA	2250	2050	285
CIMR-MV2UD6DA315ABA	2500	2270	315
CIMR-MV2UD6DA340ABA	2750	2500	340
CIMR-MV2UD6DA375ABA	3000	2700	375	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA440ABA	3500	3170	440
CIMR-MV2UD6DA505ABA	4000	3640	505
CIMR-MV2UD6DA575ABA	4500	4140	575
CIMR-MV2UD6DA625ABA	5000	4500	625	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA650ABA	5200	4680	650
CIMR-MV2UD6DA700ABA	5500	5040	700
CIMR-MV2UD6DA800ABA	6000	5760	800
CIMR-MV2UD6DA870ABA	7000	6120	870	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA990ABA	8000	7130	990
CIMR-MV2UD6DAB20ABA	9000	8070	1120
CIMR-MV2UD6DAC35ABA	10000	8900	1235
CIMR-MV2UD6DAD50ABA	11000	9725	1350
CIMR-MV2UD6DAF25ABA	12000	10985	1525

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	4.16 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2UD6DA039ABA	300	280	39	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA052ABA	400	375	52
CIMR-MV2UD6DA058ABA	450	420	58
CIMR-MV2UD6DA064ABA	500	460	64
CIMR-MV2UD6DA077ABA	600	550	77	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA093ABA	700	670	93
CIMR-MV2UD6DA102ABA	800	735	102
CIMR-MV2UD6DA115ABA	900	830	115
CIMR-MV2UD6DA125ABA	1000	900	125	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA155ABA	1250	1120	155
CIMR-MV2UD6DA190ABA	1500	1370	190
CIMR-MV2UD6DA220ABA	1750	1590	220
CIMR-MV2UD6DA250ABA	2000	1800	250	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA285ABA	2250	2050	285
CIMR-MV2UD6DA315ABA	2500	2270	315
CIMR-MV2UD6DA340ABA	2750	2500	340
CIMR-MV2UD6DA375ABA	3000	2700	375	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA440ABA	3500	3170	440
CIMR-MV2UD6DA505ABA	4000	3640	505
CIMR-MV2UD6DA575ABA	4500	4140	575
CIMR-MV2UD6DA625ABA	5000	4500	625	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA650ABA	5200	4680	650
CIMR-MV2UD6DA700ABA	5500	5040	700
CIMR-MV2UD6DA800ABA	6000	5760	800
CIMR-MV2UD6DA870ABA	7000	6120	870	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UD6DA990ABA	8000	7130	990
CIMR-MV2UD6DAB20ABA	9000	8070	1120
CIMR-MV2UD6DAC35ABA	10000	8900	1235
CIMR-MV2UD6DAD50ABA	11000	9725	1350
CIMR-MV2UD6DAF25ABA	12000	10985	1525

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	4.16 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2AD6DA039ABA	300	280	39	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AD6DA052ABA	400	375	52
CIMR-MV2AD6DA058ABA	450	420	58
CIMR-MV2AD6DA064ABA	500	460	64
CIMR-MV2AD6DA077ABA	600	550	77	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AD6DA093ABA	700	670	93
CIMR-MV2AD6DA102ABA	800	735	102
CIMR-MV2AD6DA115ABA	900	830	115
CIMR-MV2AD6DA125ABA	1000	900	125	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AD6DA155ABA	1250	1120	155
CIMR-MV2AD6DA190ABA	1500	1370	190
CIMR-MV2AD6DA220ABA	1750	1590	220
CIMR-MV2AD6DA250ABA	2000	1800	250	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AD6DA285ABA	2250	2050	285
CIMR-MV2AD6DA315ABA	2500	2270	315
CIMR-MV2AD6DA340ABA	2750	2500	340
CIMR-MV2AD6DA375ABA	3000	2700	375	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AD6DA440ABA	3500	3170	440
CIMR-MV2AD6DA505ABA	4000	3640	505
CIMR-MV2AD6DA575ABA	4500	4140	575
CIMR-MV2AD6DA625ABA	5000	4500	625	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AD6DA650ABA	5200	4680	650
CIMR-MV2AD6DA700ABA	5500	5040	700
CIMR-MV2AD6DA800ABA	6000	5760	800
CIMR-MV2AD6DA870ABA	7000	6120	870	Three-Phase: 4160 V Sine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AD6DA990ABA	8000	7130	990
CIMR-MV2AD6DAB20ABA	9000	8070	1120
CIMR-MV2AD6DAC35ABA	10000	8900	1235
CIMR-MV2AD6DAD50ABA	11000	9725	1350
CIMR-MV2AD6DAF25ABA	12000	10985	1525

Biến tần trung thế yaskawa 6.6 kV, 3-Phase

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	6.6 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2UF6FA035ABA	350	400	35	Three-Phase: 6000 V or 6600 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UF6FA050ABA	500	570	50
CIMR-MV2UF6FA070ABA	800	800	70
CIMR-MV2UF6FA100ABA	1250	1150	100
CIMR-MV2UF6FA140ABA	1750	1600	140
CIMR-MV2UF6FA200ABA	2500	2300	200	Three-Phase: 6000 V or 6600 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2UF6FA260ABA	3250	3000	260
CIMR-MV2UF6FA330ABA	4000	3800	330
CIMR-MV2UF6FA400ABA	5000	4600	400
CIMR-MV2UF6FA530ABA	6500	6000	520
CIMR-MV2UF6FA650ABA	8000	7500	650

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	6.6 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2TF6FA035ABA	350	400	35	Three-Phase: 6000 V or 6600 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2TF6FA050ABA	500	570	50
CIMR-MV2TF6FA070ABA	800	800	70
CIMR-MV2TF6FA100ABA	1250	1150	100
CIMR-MV2TF6FA140ABA	1750	1600	140
CIMR-MV2TF6FA200ABA	2500	2300	200	Three-Phase: 6000 V or 6600 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2TF6FA260ABA	3250	3000	260
CIMR-MV2TF6FA330ABA	4000	3800	330
CIMR-MV2TF6FA400ABA	5000	4600	400
CIMR-MV2TF6FA530ABA	6500	6000	520
CIMR-MV2TF6FA650ABA	8000	7500	650

DRIVE MODEL NUMBER	NOMINAL CAPACITY		OUTPUT RATING
DRIVE MODEL NUMBER	MOTOR CAPACITY (HP)	6.6 KV OUTPUT (KVA)	RATED OUTPUT CURRENT (AMPS)	RATED OUTPUT VOLTAGE (V)	OVERLOAD RATINGS
CIMR-MV2AF6FA035ABA	350	400	35	Three-Phase: 6000 V or 6600 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AF6FA050ABA	500	570	50
CIMR-MV2AF6FA070ABA	800	800	70
CIMR-MV2AF6FA100ABA	1250	1150	100
CIMR-MV2AF6FA140ABA	1750	1600	140
CIMR-MV2AF6FA200ABA	2500	2300	200	Three-Phase: 6000 V or 6600 VSine wave, proportional to input voltage	110% of rated output current for 60 sec. 120% of rated output current for 15 sec.
CIMR-MV2AF6FA260ABA	3250	3000	260
CIMR-MV2AF6FA330ABA	4000	3800	330
CIMR-MV2AF6FA400ABA	5000	4600	400
CIMR-MV2AF6FA530ABA	6500	6000	520
CIMR-MV2AF6FA650ABA	8000	7500	650

Yaskawa MV1000 Dimensions & Weights

2.3 kV, 3-Phase

Drive Model Number	Frame Size	Dimensions (in.)			Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
Drive Model Number	Frame Size	W	D	H	Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
CIMR-MV2UA6AA052E1ABA	1	66.4	41.5	109.3	5840	5100	200
CIMR-MV2UA6AA068E1ABA						6600	300
CIMR-MV2UA6AA080E1ABA						7800	350
CIMR-MV2UA6AA093E1ABA						9300	400
CIMR-MV2UA6AA102E1ABA						10200	450
CIMR-MV2UA6AA115E1ABA					6800	11400	500
CIMR-MV2UA6AA135E1ABA					6800	13500	600
CIMR-MV2UA6AA160E1ABA	2A	118.2	50.0	105.7	11518	15666	700
CIMR-MV2UA6AA180E1ABA	2A	118.2	50.0		11518	17904	800
CIMR-MV2UA6AA205E1ABA	2B	128.1	55.0		13180	20142	900
CIMR-MV2UA6AA220E1ABA	2B	128.1	55.0		13180	22380	1000
CIMR-MV2UA6AA280E1ABA	3	173.6	63.1	99.6	16085	27975	1250
CIMR-MV2UA6AA330E1ABA					16085	33570	1500
CIMR-MV2UA6AA390E1ABA					18550	39165	1750
CIMR-MV2UA6AA440E1ABA	4A	208.7	63.0	110.2	23810	44760	2000
CIMR-MV2UA6AA505E1ABA	4A	208.7			23810	50355	2250
CIMR-MV2UA6AA550E1ABA	4B	220.5			26015	55950	2500
CIMR-MV2UA6AA600E1ABA	4B	220.5			26015	61545	2750

¹Drive weight only – not shipping weight

3.3 kV, 3-Phase

Drive Model Number	Frame Size	Dimensions (in.)			Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
Drive Model Number	Frame Size	W	D	H	Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
CIMR-MV2UCA035ABA	Contact Factory at 1-800-YASKAWA (927-5292) or 1-847-887-7457						175
CIMR-MV2UCA050ABA							250
CIMR-MV2UCA070ABA							400
CIMR-MV2UCA100ABA							500
CIMR-MV2UCA140ABA							750
CIMR-MV2UCA200ABA							1000
CIMR-MV2UCA260ABA							1500
CIMR-MV2UCA330ABA							2000
CIMR-MV2UCA400ABA							2500
CIMR-MV2UCA520ABA							3500
CIMR-MV2UCA650ABA							4000

4.16 kV, 3-Phase

Drive Model Number	Frame Size	Dimensions (in.)			Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
Drive Model Number	Frame Size	W	D	H	Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
CIMR-MV2UD6DA039ABA	1	66.4	41.5	109.3	5840	6600	300
CIMR-MV2UD6DA052ABA						9000	400
CIMR-MV2UD6DA058ABA						9900	450
CIMR-MV2UD6DA064ABA						11100	500
CIMR-MV2UD6DA077ABA					6800	13200	600
CIMR-MV2UD6DA093ABA						16200	700
CIMR-MV2UD6DA102ABA						17700	800
CIMR-MV2UD6DA115ABA					7359	19800	900
CIMR-MV2UD6DA125ABA					7359	21600	1000
CIMR-MV2UD6DA155ABA	2A	118.2	50.0	105.7	11518	27975	1250
CIMR-MV2UD6DA190ABA	2A	118.2	50.0		11518	33570	1500
CIMR-MV2UD6DA220ABA	2B	128.1	55.0		13180	39165	1750
CIMR-MV2UD6DA250ABA	2B	128.1	55.0		13180	44760	2000
CIMR-MV2UD6DA285ABA	3	173.6	63.1	99.6	16085	50355	2250
CIMR-MV2UD6DA315ABA					16085	55950	2500
CIMR-MV2UD6DA340ABA					18550	61545	2750
CIMR-MV2UD6DA375ABA					18550	67140	3000
CIMR-MV2UD6DA440ABA	4A	208.7	63.0	110.2	23810	78330	3500
CIMR-MV2UD6DA505ABA	4A	208.7			23810	89520	4000
CIMR-MV2UD6DA575ABA	4B	220.5			26015	100710	4500
CIMR-MV2UD6DA625ABA	4B	220.5			26015	111900	5000
CIMR-MV2UD6DA650ABA	Contact Factory at 1-800-YASKAWA (927-5292) or 1-847-887-7457						5200
CIMR-MV2UD6DA700ABA							5500
CIMR-MV2UD6DA800ABA							6000
CIMR-MV2UD6DA870ABA							7000
CIMR-MV2UD6DA990ABA							8000
CIMR-MV2UD6DAB20ABA							9000
CIMR-MV2UD6DaC35ABA							10000
CIMR-MV2UD6DAD50ABA							11000
CIMR-MV2UD6DAF25ABA							12000

6.6 kV, 3-Phase

Drive Model Number	Frame Size	Dimensions (in.)			Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
Drive Model Number	Frame Size	W	D	H	Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
CIMR-MV2UF6FA035ABA	Contact Factory at 1-800-YASKAWA (927-5292) or 1-847-887-7457						350
CIMR-MV2UF6FA050ABA							500
CIMR-MV2UF6FA070ABA							800
CIMR-MV2UF6FA100ABA							1250
CIMR-MV2UF6FA140ABA							1750
CIMR-MV2UF6FA200ABA							2500
CIMR-MV2UF6FA260ABA							3250
CIMR-MV2UF6FA330ABA							4000
CIMR-MV2UF6FA400ABA							5000
CIMR-MV2UF6FA530ABA							6500
CIMR-MV2UF6FA650ABA							8000

11 kV, 3-Phase

Model CIMR-MV2A	Frame Size	W	D	H	Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
Model CIMR-MV2A	Frame Size	Dimensions (in.)			Weight (lbs.)¹	Heat Loss (W)	Motor Rating (HP)
Contact Factory at 1-800-YASKAWA (927-5292) or 1-847-887-7457

Sản phẩm liên quan

Yaskawa MV1000 NEMA 3R

Brochure

Xem chi tiết →
