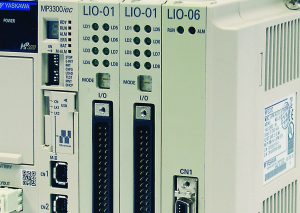

MP3300iec

ControllersYaskawa

MP3300iec
MP3300iec

MP3300iec

The MP3300iec is the newest member of the MPiec series. It offers:

  • IEC61131-3 and PLCopen programming standards
  • MECHATROLINK-III motion network
  • 1, 3 or 8 option modules
  • 4, 8, 20, 32 or 62 motion axes

MP3300iec Features

Communication Protocols

  • Open standards EtherNet/IP, Modbus/TCP and others for connectivity to many peripheral devices on the market.

Standard Programming Languages

  • IEC61131-3 means that programs are developed and executed with predictable behavior.

Programmable Amplifier Outputs

  • The controller can operate local SERVOPACK outputs. This reduces panel cost and space requirements when just a couple of outputs are necessary.

Controller-Centric Commissioning

  • The MECHATROLINK motion network provides a channel for configuring the machine from a single location with one software tool.

A Multitude of Options

  • Choose from eight option cards offered for the expansion slots to accommodate most machine requirements.

Remote I/O

  • Use Yaskawa’s VIPA SLIO EtherNet/P modules to meet all your remote I/O needs. Numerous third-party remote I/Os such as Phoenix, Wago, and Opto 22 can also be interfaced with the system via MECHATROLINK and Ethernet.

Web Server

  • A built-in web server offers standard controller diagnostic information eliminating the need for special software for maintenance personnel

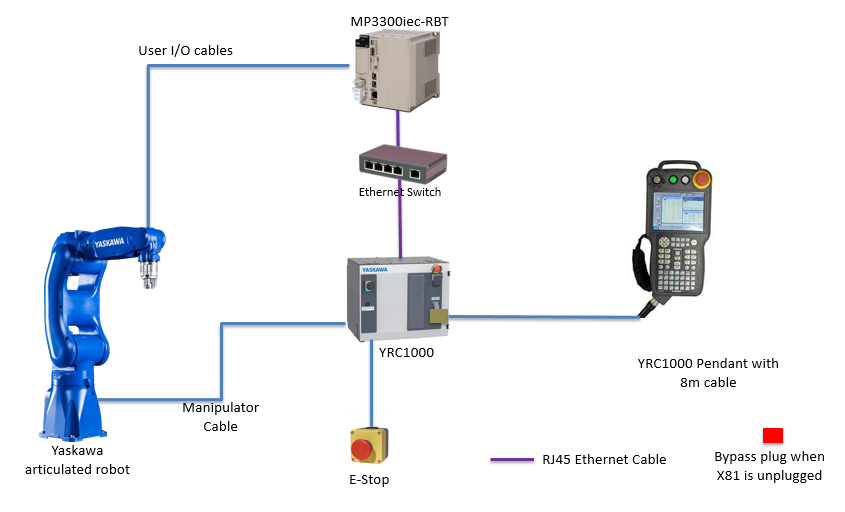

RS-274 G-code available with all Yaskawa kinematic libraries

  • 4 degrees of freedom (MP3300iec-ER and 5-Axis Simultaneous Control Toolbox required for full 6 degrees of freedom)
  • Linear interpolation, circular interpolation, and tangent following
  • Work coordinate system offset and tool offset
  • Pause, continue and feed-rate override

MP3300iec Specifications

Item
Description
MP3300iec Controller CPU Model Number PMC-U-MP33004 (Standard Performance), 4-axis, IMI Connector
PMC-U-MP33008 (Standard Performance), 8-axis, IMI Connector
PMC-U-MP33020 (Standard Performance), 20-axis, IMI Connector
PMC-U-MP33320 (Medium Performance), 20-axis, IMI Connector
PMC-U-MP33332 (Medium Performance), 32-axis, IMI Connector
PMC-U-MP33532 (High Performance), 32-axis, IMI Connector
PMC-U-MP33562 (High Performance), 62-axis, IMI Connector
PMC-U-MP33104 (Standard Performance), 4-axis, RJ45 Connector
PMC-U-MP33108 (Standard Performance), 8-axis, RJ45 Connector
PMC-U-MP33120 (Standard Performance), 20-axis, RJ45 Connector
PMC-U-MP33420 (Medium Performance), 20-axis, RJ45 Connector
PMC-U-MP33432 (Medium Performance), 32-axis, RJ45 Connector
PMC-U-MP33632 (High Performance), 32-axis, RJ45 Connector
PMC-U-MP33662 (High Performance), 62-axis, RJ45 Connector
Supported Modules LIO-01, LIO-02, LIO-04, LIO-05, LIO-06, AI-01, AO-01, DO-01
Software MotionWorks IEC Express
MotionWorks IEC Pro
CPU 400 MHz, 800 Mhz or 1.2 GHz
Number of option module slots 1, 3 or 8
User Variable Memory 32 MB
Power Unit Input Voltage: 24VDC or 100/200VAC

Input Current:
1.0 A max (at rated input/output) for 1 slot module
1.5 A max (at rated input/output) for 3 slots module
1.5 A max (at rated input/output) for 8 slots DC module
3.0 A max (at rated input/output) for 8 slots AC module

Battery: Battery for memory retention attachable at the bottom of the CPU unit
Motion Network MECHATROLINK-III: 1 channel, 2 connectors
SERVOPACK and I/O for up to 20 slave nodes connectable
(SERVOPACK for up to 20 axes)
Baud rate: 100 Mbps (MECHATROLINK-III)
Communication Function Ethernet: 10Base-T or 100Base-TX
Ethernet Protocols Ethernet/IP and Modbus TCP/IP standard on all units, User specific protocols can be written using Y_DeviceComm firmware library
Calendar Seconds, minutes, hour, day, week, month, year, day of week, and timing (battery backup)
Environmental Conditions Ambient Operating Temperature: 0°C to 60°C (Forced cooling is required if 55°C is exceeded.)
Ambient Storage Temperature: -25°C to 85°C
Ambient Operating Humidity: 10% to 95% RH (with no condensation)
Ambient Storage Humidity: 10% to 95% RH (with no condensation)
Pollution Level: Conforms to JIS B 3502 Pollution Degree 2
Corrosive Gas: There must be no combustible or corrosive gas
Operating Altitude: 2,000 m above sea level or lower
Mechanical Conditions Vibration Resistance: Conforming to JIS B 3502:

  • Continuous vibration: 5 to 9 Hz with single amplitude of 1.75 mm
  • 9 to 150 Hz with fixed acceleration of 4.9 m/s2
  • Intermittent vibration: 5 to 9 Hz with single-amplitude of 3.5 mm
  • 9 to 150 Hz with fixed acceleration of 9.8 m/s2
  • 10 sweeps each in X, Y, and Z directions for both intermittent and continuoust vibration

Shock Resistance:
Size of shock: Peak acceleration of 147 m/s2 (15 G)
Duration: 11 ms 3 times each in the X, Y, and Z directions
Electrical Operating Conditions Noise Resistance:
Conforming to EN 61000-6-2, EN 61000-6-4 and EN 55011 (Group 1, Class A)
Power supply noise (FT noise): 2 Kv min., for one minute
Radiation noise (FT noise): 1 Kv min., for one minute
Ground noise (impulse noise): 1 kV min., for 10 minutes
Electrostatic noise (contact discharge method): 6 kV or more, 10 times
Installation Requirements Ground: Ground to 100 Ω max.
Cooling Method: Natural cooling or forced-air cooling
Connectors M-III: MECHATROLINK (IMI or RJ45), 2 connectors
Ethernet: RJ 45: Ethernet
RLY OUT: RLY OUT connector
USB: DUSB-ARA42-T11A-FA (DDK), type A connector
Indicators RDY(green), RUN(green), ALM(red), ERR(red), BAT(red), M-ALM(red)
Switches STOP, E-INIT, INIT, CNFG, LOAD, TEST and MNT
Dimensions 64 mm X 130 mm X 108 mm (W × H × D) with 1 slot module
120 mm X 130 mm X 108 mm (W × H × D) with 3 slots module
240 mm X 130 mm X 108 mm (W x H x D) with 8 slots module

MP3300iec System Components

Complete your machine controller by adding option modules, accessories, and software development environments listed here.

Download MPiec Hardware Manual (Doc# YAI-SIA-IEC-7)

Item Part Number Description
MP3300iec Controller CPU PMC-U-MP33004 (Standard Performance), 4-axis, IMI Connector
PMC-U-MP33008 (Standard Performance), 8-axis, IMI Connector
PMC-U-MP33020 (Standard Performance), 20-axis, IMI Connector
PMC-U-MP33320 (Medium Performance), 20-axis, IMI Connector
PMC-U-MP33332 (Medium Performance), 32-axis, IMI Connector
PMC-U-MP33532 (High Performance), 32-axis, IMI Connector
PMC-U-MP33562 (High Performance), 62-axis, IMI Connector
PMC-U-MP33104 (Standard Performance), 4-axis, RJ45 Connector
PMC-U-MP33108 (Standard Performance), 8-axis, RJ45 Connector
PMC-U-MP33120 (Standard Performance), 20-axis, RJ45 Connector
PMC-U-MP33420 (Medium Performance), 20-axis, RJ45 Connector
PMC-U-MP33432 (Medium Performance), 32-axis, RJ45 Connector
PMC-U-MP33632 (High Performance), 32-axis, RJ45 Connector
PMC-U-MP33662 (High Performance), 62-axis, RJ45 Connector
Power Supply & Base Unit Rack JEPMC-BU3304-E 24VDC power supply with single slot base unit rack
JEPMC-BU3303-E 24VDC power supply with three slot base unit rack
JEPMC-BU3302-E 24VDC power supply with eight slot base unit rack
JEPMC-BU3301-E 100/200VAC power supply with eight slot base unit rack
Accessories JEPMC-BA3001 Replacement Battery
JEPMC-OP3301-1-E Replacement CPU Faceplate
JEPMC-OP3301-E Option Slot Cover
I/O Option Cards JAPMC-AN2300 Analog Inputs (AI-01)
JAPMC-AN2310 Analog Outputs (AO-01)
JAPMC-DO2300 Digital Output Module (DO-01)
JAPMC-IO2300-E Digital I/O Module (LIO-01)
JAPMC-IO2301-E Digital I/O Module (LIO-02)
JAPMC-IO2303 Digital I/O Module (LIO-04)
JAPMC-IO2304 Digital I/O Module (LIO-05)
JAPMC-IO2305-E Multi-Function I/O Module (LIO-06)
MECHATROLINK-III Cables JEPMC-W6012-A2-E 0.2m, IMI to IMI1
JEPMC-W6012-A5-E 0.5m, IMI to IMI1
JEPMC-W6012-01-E 1.0m, IMI to IMI1
JEPMC-W6012-02-E 2.0m, IMI to IMI1
JEPMC-W6012-03-E 3.0m, IMI to IMI1
JEPMC-W6012-04-E 4.0m, IMI to IMI1
JEPMC-W6012-05-E 5.0m, IMI to IMI1
JEPMC-W6012-10-E 10.0m, IMI to IMI1
JEPMC-W6012-20-E 20.0m, IMI to IMI1
JEPMC-W6012-30-E 30.0m, IMI to IMI1
JEPMC-W6012-50-E 50.0m, IMI to IMI1
JZSP-CM3RMM0-00P2-E 0.2m, RJ45 to IMI2
JZSP-CM3RMM0-00P5-E 0.5m, RJ45 to IMI2
JZSP-CM3RMM0-01-E 1.0m, RJ45 to IMI2
JZSP-CM3RMM0-03-E 3.0m, RJ45 to IMI2
JZSP-CM3RMM0-05-E 5.0m, RJ45 to IMI2
JZSP-CM3RMM0-10-E 10.0m, RJ45 to IMI2
JZSP-CM3RM00-20-E 20.0m, RJ45 to IMI2
JZSP-CM3RM00-30-E 30.0m, RJ45 to IMI2
JZSP-CM3RM00-40-E 40.0m, RJ45 to IMI2
JZSP-CM3RM00-50-E 50.0m, RJ45 to IMI2
JZSP-CM3RRM0-00P2-E 0.2m, RJ45 to IMI3
JZSP-CM3RRM0-00P5-E 0.5m, RJ45 to IMI3
JZSP-CM3RRM0-01-E 1.0m, RJ45 to RJ453
JZSP-CM3RRM0-03-E 3.0m, RJ45 to RJ453
JZSP-CM3RRM0-05-E 5.0m, RJ45 to RJ453
JZSP-CM3RRM0-10-E 10.0m, RJ45 to RJ453
JZSP-CM3RR00-20-E 20.0m, RJ45 to RJ453
JZSP-CM3RR00-30-E 30.0m, RJ45 to RJ453
JZSP-CM3RR00-40-E 40.0m, RJ45 to RJ453
JZSP-CM3RR00-50-E 50.0m, RJ45 to RJ453
MECHATROLINK-III Network Accessories JEPMC-MT2000-E Hub, 8 Slave Ports
JEPMC-MT2020-E Adaptor, Ethernet to Mechatrolink
JEPMC-MTD2310-E I/O Module; 64 In 64 Out
  1. For Sigma-5 amp to Sigma-5 amp or Sigma-5 amp to IMI Controller
  2. For Sigma-7 amp to IMI Controller
  3. For Sigma-7 amp to Sigma-7 amp to Sigma-7 amp to RJ45 Controller

Sản phẩm liên quan

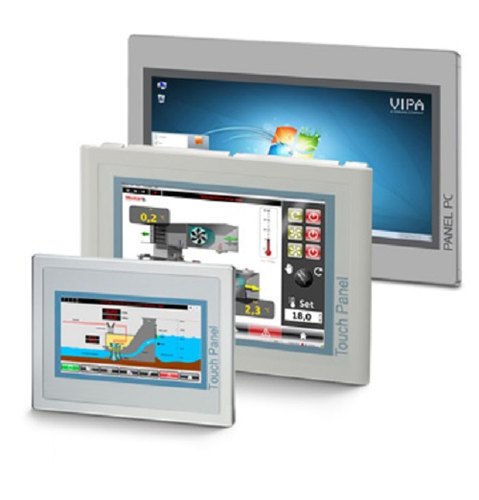

Panel PC
