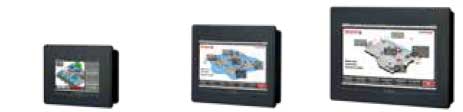

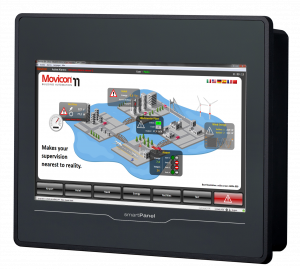

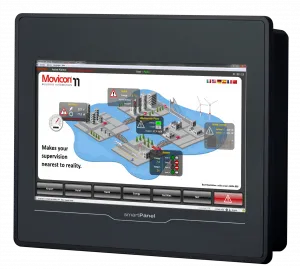

SmartPanel

smartPanel is optimally designed for medium-sized applications. They stand for high usability and connectivity. Equipped with Movicon 11 Standard, the user is practically unrestricted in terms of tags, screens, recipes, alarms, etc.

SmartPanel Features

Quality

• Robust and durable – High-quality metal housing with IP65 protection rating (front)

Functionality

• The smartPanel comes with Movicon 11 and Windows Embedded Compact 7

smartPanel in detail

• Slim profile
• Robust housing
• Powerful scripting capabilities

Open for teleservice

• By means of the VNC-Client software you can also have access to your smartPanel via teleservice

SmartPanel Specifications

	H41-71A41-0	H71-71A41-0	HA1-71A41-0
Operating System	Windows Embedded Compact 7
Runtime	Movicon 11
Display Size (Zoll)	4.3	7	10
Resolution (Pixel)	480×272	800×480	1024×600
Touch Screen	resistive
Processor	ARM Cortex-A8 1 GHz
Interfaces	1x RS232/422/485, 1x USB-A, 1x Ethernet
int. RFID Reader	–
Work Memory (MB)	512
Load Memory (GB)	4
Card Slot	–
Housing	Plastic
Protection	Front: IP 66 / Rear: IP 20

---

Order no.	Name/Description
H41-71A41-0	smartPanel TP304-SM Display: 4.3″ Processor: Cortex-A8 | 1GHz Work memory [MB]: 512 User memory [GB]: 4 Interface onboard: 1x RS232/422/485 | 1x USB-A | 1x RJ45 (Ethernet) Software: Windows Embedded Compact 7 Movicon CE Standard	Datasheet Manual More >
H71-71A41-0	smartPanel TP307-SM Display: 7″ Processor: Cortex-A8 | 1GHz Work memory [MB]: 512 User memory [GB]: 4 Interface onboard: 1x RS232/422/485 | 1x USB-A | 1x RJ45 (Ethernet) Software: Windows Embedded Compact 7 Movicon CE Standard	Datasheet Manual More >
HA1-71A41-0	smartPanel TP310-SM Display: 10.1″ Processor: Cortex-A8 | 1GHz Work memory [MB]: 512 User memory [GB]: 4 Interface onboard: 1x RS232/422/485 | 1x USB-A | 1x RJ45 (Ethernet) Software: Windows Embedded Compact 7 Movicon CE Standard	Datasheet Manual More >
